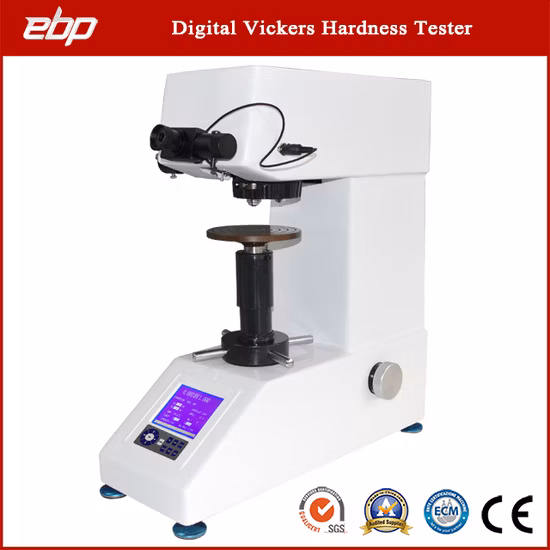

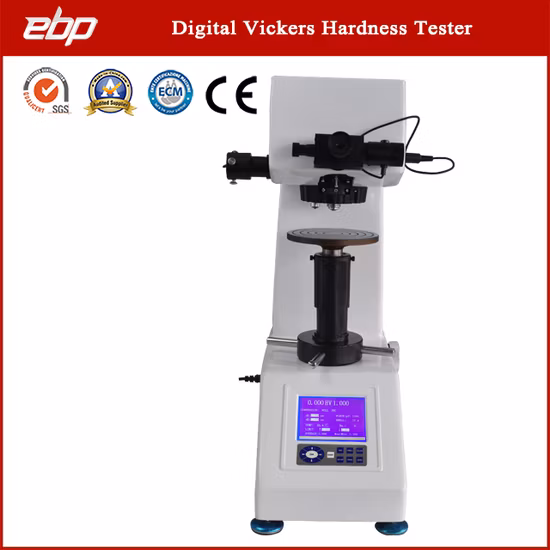

Digital Macro Vickers Hardness Testing Machine with Manual Turret Hv0.3

Overview

Basic Info.

Model NO.	eVIck-5BM
Calibrating Method	Length Scale and Standard Hardness Blocks
Rated Voltage	220V (110V for Optional)
Support Language	English or Chinese
Customized	Customized
Magnification	100X, 200X
Force Loading Process	Automatic Loading - Dwell - Unloading
Test Force	0.3 - 5kgf
Light Source	LED Cold Light Source
Inbuilt Printer	Yes
Camera Port	Yes
Eyepiece	Digital Eyepice with Encoder
Easy Calibration Function	Yes
Quality Judgement Function	Yes
Data Output	Built-in Printer
Hardness Conversion Scale	Yes
Display	Keypad Type LCD Screen
Transport Package	Plywood Box
Specification	73*49*90cm
Trademark	EBP
Origin	Zhejiang, China
HS Code	9024102000
Production Capacity	100 Sets Per Month

Product Description

Product Description

With high-quality imported components, ensure the new type digital Micro Hardness Testers working more stable. Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise. This machine is integrated with optics, mechanics and electricity. It with unbeatable price / performance ratio, widely used in quality inspection and quality control field.

Main purpose and application:1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating.3. Glass, chip and ceramic material. Main Features:1. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.2. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation. 3. With Vickers hardness and Knoop hardness testing capabilities, and testing range from HV0.3 to HV5. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.4. Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process; 5. Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specification:

Model	eVIck-5BM
Turret	Manual
Hardness Scale	HV0.3, HV0.5, HV1, HV2, HV3, HV5
Test Force	0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N)
Hardness conversion scale	HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T
Loading speed	≤50μm/sec
Min. Measuring Unit	0.01μm

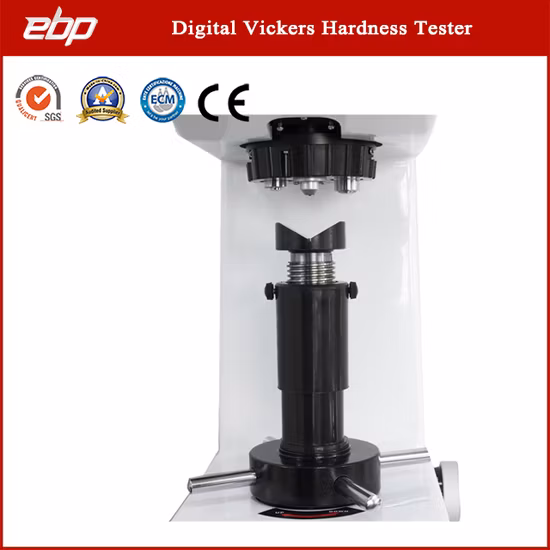

Indenter	Standard Rectangular pyramid diamond indenter (136º±0.5º)
Hardness Value Range	5-3000HV, 8-4500HK
Hardness Value of Reading	Digital LCD Screen
Total Magnification	100X (For Observation), 200X (For Measurement)
Loading Method	Automatically (Load, dwell and unload)
Dwell Time	1-99s (each step is 1 second)
Maximum Height	160mm (work with XY work table); 180mm work with standard work table
Throat depth	125mm
Light Source	LED Cold light source
Power Supply	220V + 5%, 50/60 Hz (110V is available)
X-Y Testing Table (optional purchase)	Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm
Instrument size and Net weight	600*220*700mm; 55kg
Packing size & G/W	730*490*900mm; 70kg
Executed Standard	GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734
Standard Accessories	1 piece: 10X electronic eyepiece ; 10X and 20X objective lens; Vickers indenter; Level bubble; Large / Medium / V-shape Testing Table; Power line; Dust proof cover; Manual Book; Hardness Conversion Tables; Quality certificate; Warranty Card; Accessory case 2 pieces: Standard block of hardness4 pieces: horizontal adjusting screw
Optional Purchase Accessories	Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece

More Detailed Features:

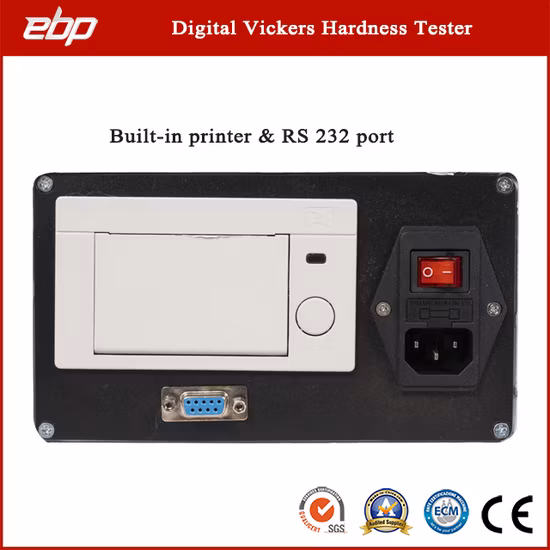

1) Machine is equipped with built-in printer and RS 232 port, testing data can print out directly by the printer. If want to save testing data to PC and generate a simple test report via RS232 port, please additional purchase our data transfer software. (printer and Data transfer software same as below pictures)
2) If want to connect with computer do automatic measurement work and generate test report, please additional purchase our professional Vickers hardness software system.

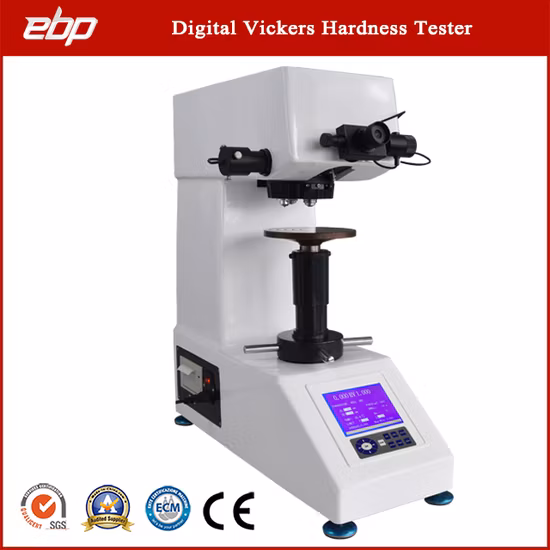

3) LCD screen with menu structure, Hardness value, hardness scale, Conversion Scale, Dwell time, Limit, Lightness, etc all can display on screen directly, Support Vickers HV hardness testing and HK Knoop hardness testing, very easy operation.

4) eVIck-10BA with Automatic design, great improved working efficiency. Automatic turret, automatic loading - Dwell - Unloading, digita eyepiece with encoder support automatic hardness calculate. eVIck-10BM is with manual turret. And From Vickers hardness scale can convert to HRA, HRB, HRC, HK, HBW, etc directly.

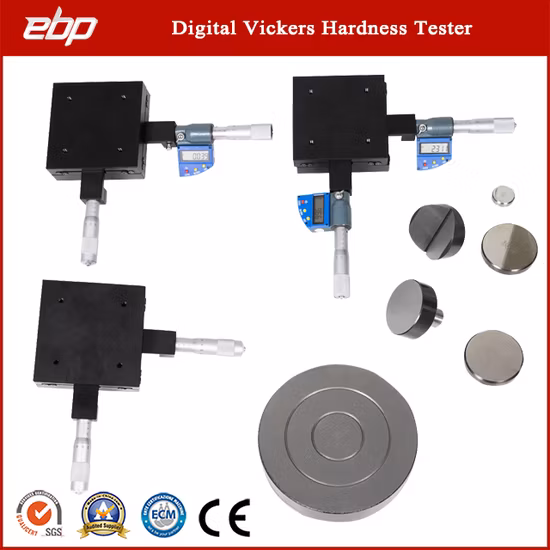

5) Standard machine come with large round work table, Optional purchase: XY microstage work table, digital meter head XY work table

6) Standard parts including 2 pieces of HV blocks and 1 piece of Vickers Diamond indenter, please let us know if need any more consumable parts.
